- Chemically clean mounting surface with clean rag and denatured rubbing alcohol. This is paramount to insuring proper adhesion.

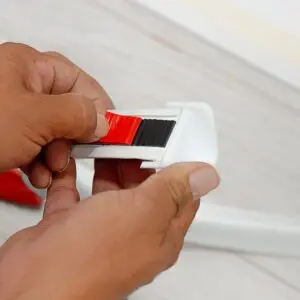

- Peel back orange tape approximately 24 inches.
- Starting approximately ½ inch from square corner, press on and adhere first 4 inches of strip.

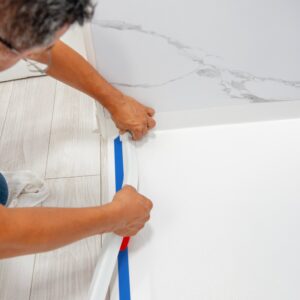

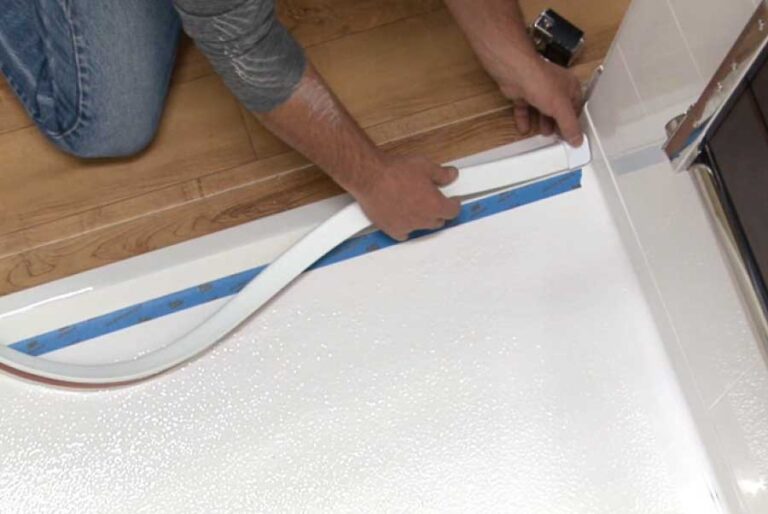

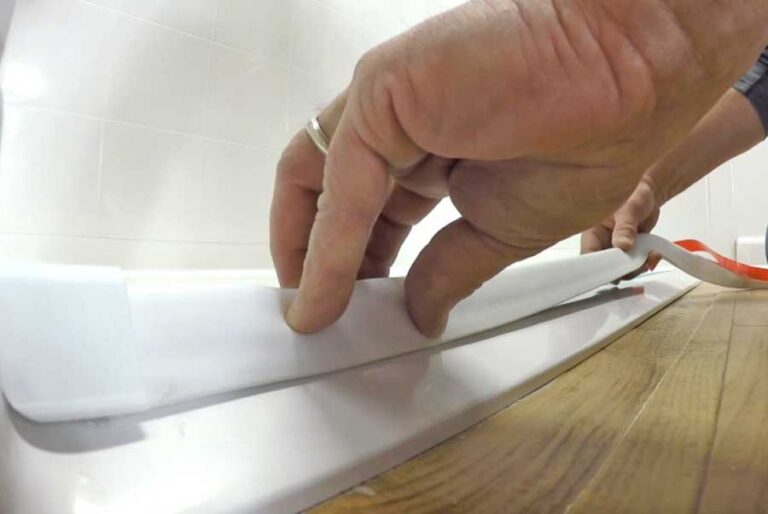

- Stretch align and pull toward center of shower, press firmly to shower surface.
- Pull and stretch to wall and align before removing remainder of orange peel-off strip.
- Peel back remaining length, repeat stretch align and pull to opposite corner.

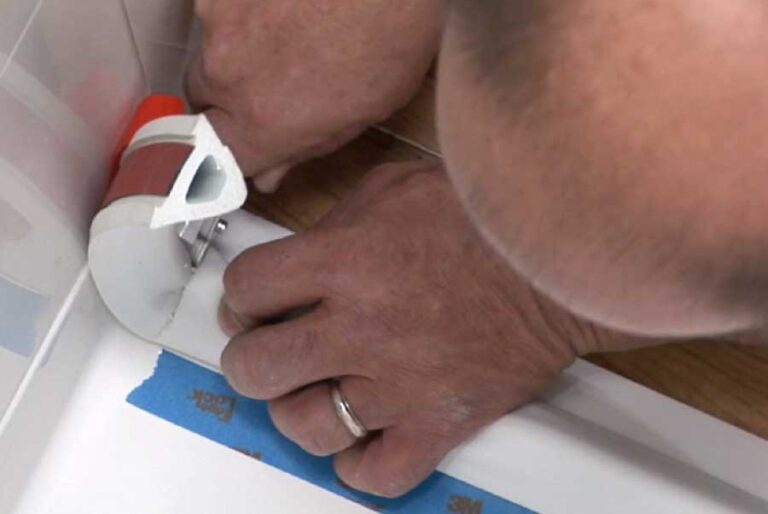

- Measure and cut excess dam with razor blade approximately ½ inch from wall.
- Dry fit square caps to insure proper fit (trim if required).

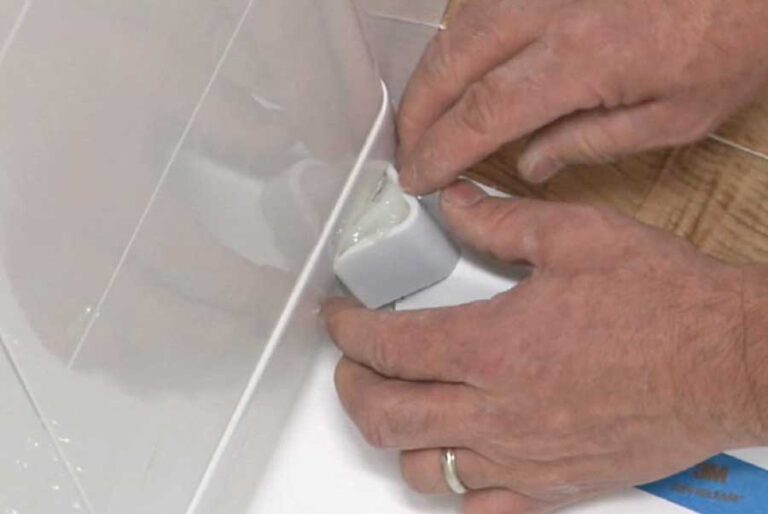

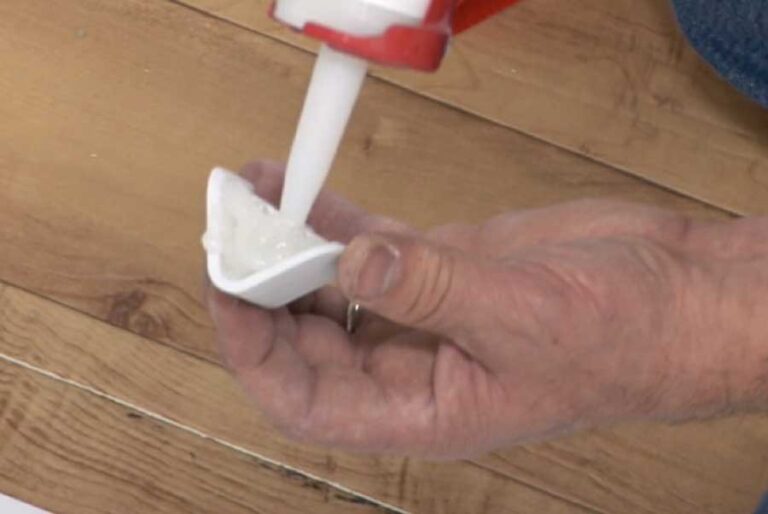

- Remove caps and apply clear silicone adhesive caulk to male end of cap and re-insert male end into collapsible dam.
- Flex cap away from the wall to apply silicone caulk to wall side of cap.

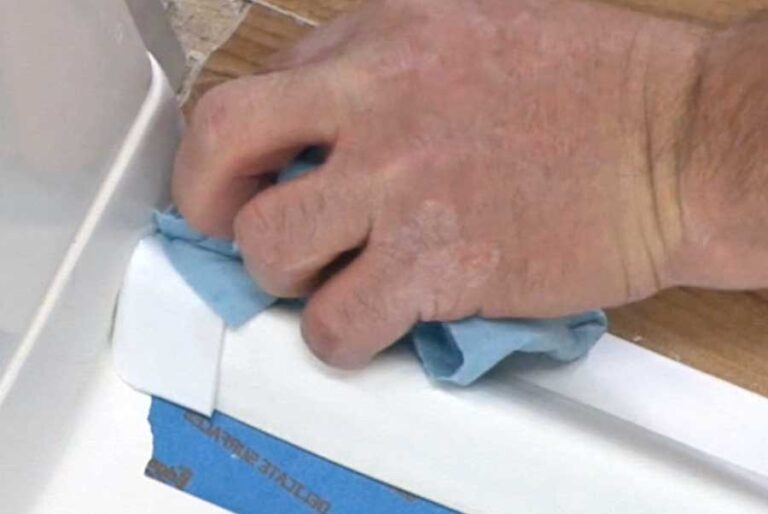

- Release and wipe away excess caulking using clean alcohol-soaked rag.
- Apply masking tape to hold cap in position if needed until adhesive is cured.
Hot
Collapsible Rubber Dam for Barrier Free Shower Bases
$17.00

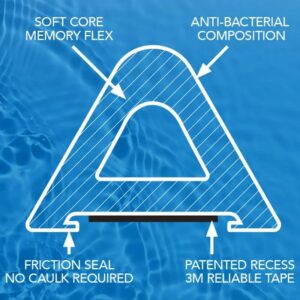

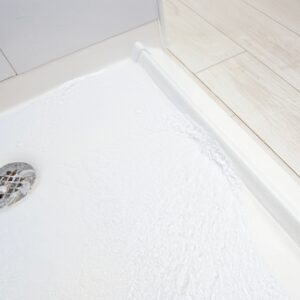

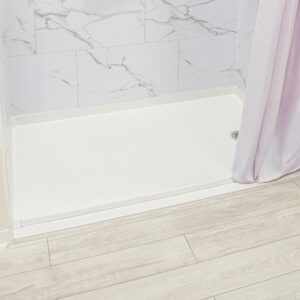

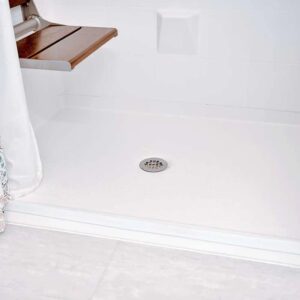

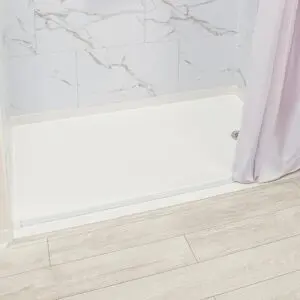

Our mobility-friendly collapsible rubber dam for low-threshold shower bases, also known as a water retainer or water stopper, provides a user-friendly solution for water containment. Designed to prevent water leaks and reduce facility liability and maintenance, it can be easily installed on top of the threshold of our Roll-in Accessible Shower Bases using water-resistant, self-adhesive tape for a mess-free application.
Note: Each individual order comes with (2) two Shower base rubber dam caps.

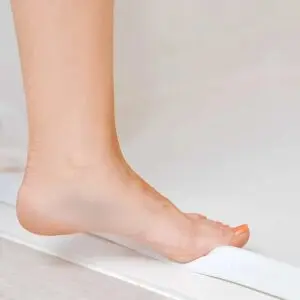

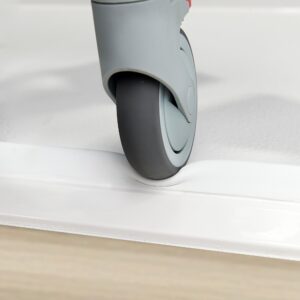

Our wheelchair and foot-friendly collapsible rubber dam, also known as a water retainer or water stopper, offers a user-friendly solution for water containment. Designed to prevent falls and reduce facility liability and maintenance, it comes standard with our Roll-in Wheelchair Accessible Shower Bases. No special tools are required for installation, thanks to the strong, water-resistant, self-adhesive tape that ensures a mess-free application. INCLUDED FEATURES FOR The grout line beneath the retainer must be caulked to prevent water travel beneath the dam. Wipe off excess caulk and let cure (according to caulk specifications) prior to use.
Easy Installation
The pre-sloped, reinforced Ella Acrylic Shower Base is designed to minimize construction time and can be easily installed on your existing sub-floor without recessing. The accessible 1″ beveled threshold and slip-resistant textured floor enhance bathing safety.

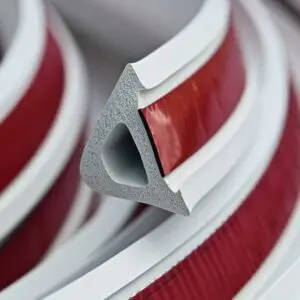

Collapsible Rubber Dam
ELLA BARRIER FREE ACRYLIC SHOWER BASES
HOW-TO-INSTALL
Collapsible Rubber Dam
Tile Application Grout Line joints
Important Note
For proper adhesion, the shower base area under the collapsible dam must be cleaned with Isopropyl Alcohol before installing the collapsible dam.
Utility Knife
Clean Rags
Tape Measure
Straight Edge
Masking Tape & Rubbing Alcohol
Clear or White 100% Silicone adhesive caulk.
